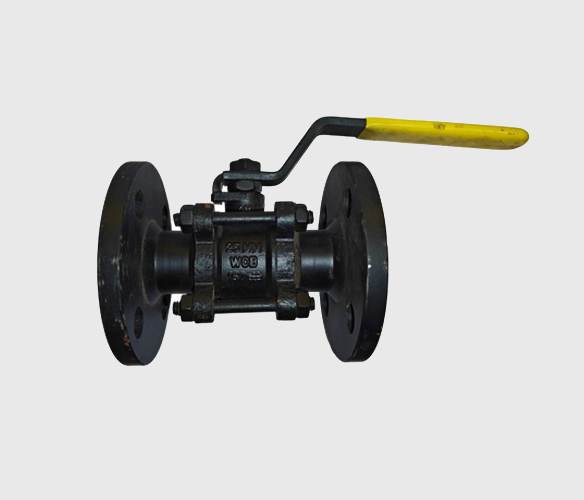

Cast Steel Ball Valve Flange End Manufacturers In India
| Part Name |
Material Option |
| Body |
ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 /
A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 /
A 351 CF3M / A 352 LCB
|
| Side Piece |
ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 /
A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 /
A 351 CF3M / A 352 LCB
|
| Ball |
ASTM A 351 CF8 / A 351 CF8M / A 182 F304 /
A 182 F316 / A 182 F6a
|
| Body Seal |
PTFE / Graphoil / Spiral Wound SS 316 with Graphoil
|
| Seats |
PTFE / PTFE / GFT / CFT
|
| Stem |
ASTM A 182 F304 / A 182 F316 / A 182 F6a
|
| Gland Bush |
ASTM A 182 F304 / A 182 F316 / A 182 F6a
|
| Gland Packing |
Graphoil / PTFE
|
| Stem Packing |
Graphite filled PTFE / Graphoil
|
| Gland Nut |
Stainless Steel
|
| Stem Nut |
Stainless Steel
|
| Lever |
Carbon Steel with PVC / Stainless Steel
|
| Disc Spring |
Carbon Steel
|
| Studs / Bolts |
ASTM A 193 B7 / A 193 B7M / A 193 B8 /
A 193 B8M / A 320 L7
|
| Nut |
ASTM A 194 2H / A 194 B7M / A 194 B /
A 194 8M / A 194 4/7
|
- For low temperature and cryogenic services extended bonnet available as per BS 6364. Locking arrangement.
- Different types of operating selections are available in Gear, Electrical and Hydraulic or Pneumatic actuator.
- Soft seats are recommended for service temperature up to 260°C
Dimension
BALL VALVE (150 #)
BALL VALVE (300 #)
Note: ISO 5211 top mounting pad for simplified Gear / Actuator in 150#, 300# as an optional in only flanged end design.
- Dimension and other engineering data are subjected to change without notice.
- Other flange drilling also available on request.
