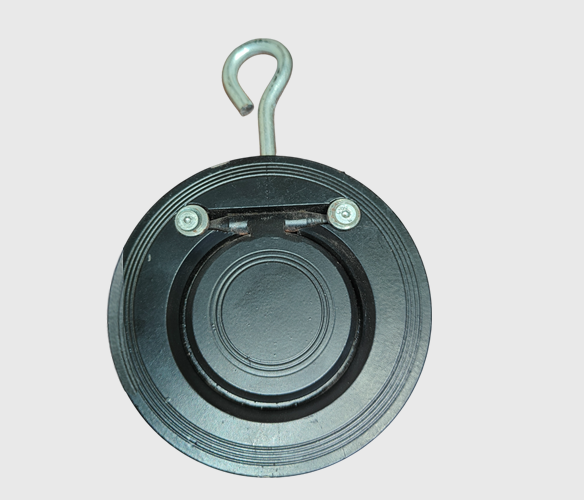

Smit valves are designed to meet the demanding requirements of the general utility valve market. These valves are truly fit & forget valve, which requires minimal maintenance.

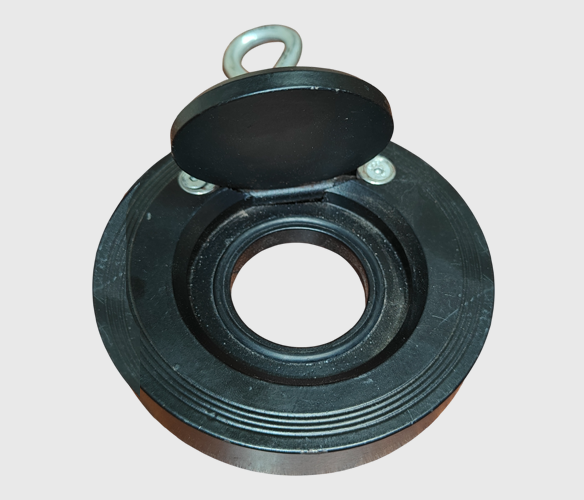

The body liner which also functions as the soft seat comes in an integrally molded (bonded) version and offers 100% bi-directional sealing against vacuum to rated pressures of PN10. The wafer style body has universal design to fit between pipe flanges of almost all popular flange standards.

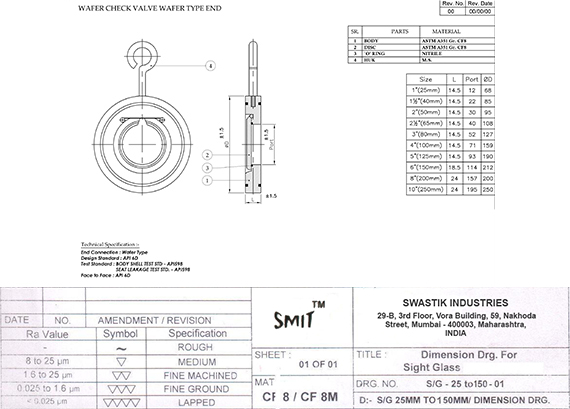

| Sr. | Parts | Material | Qty. |
|---|---|---|---|
| 1 | Body | SGI / WCB / CF8 / CF8M | 01 |
| 2 | Disc | WCB / CF8 / CF8M | 01 |
| 3 | Seat | EPDM / VITON / NITRILE / NEOPRENE / PTFE / GFT | 01 |
| MM | IN | ØB | ØD | L (For Type WCV) |
|---|---|---|---|---|
| 40 | 1.5" | 22 | 81 | 16 |
| 50 | 2" | 30 | 96 | 16 |
| 65 | 2.5" | 40 | 109 | 16 |
| 80 | 3" | 52 | 130 | 16 |
| 100 | 4" | 71 | 160 | 16 |
| 125 | 5" | 93 | 190 | 16 |
| 150 | 6" | 114 | 213 | 19 |
| 200 | 8" | 157 | 270 | 28 |
| 250 | 10" | 195 | 327 | 28 |
| 300 | 12" | 230 | 377 | 38 |
| 350 | 14" | 270 | 437 | 41 |
| 400 | 16" | 310 | 487 | 51 |
| 450 | 18" | 360 | 532 | 54 |
| 500 | 20" | 406 | 585 | 60 |
| 600 | 24" | 490 | 687 | 70 |
