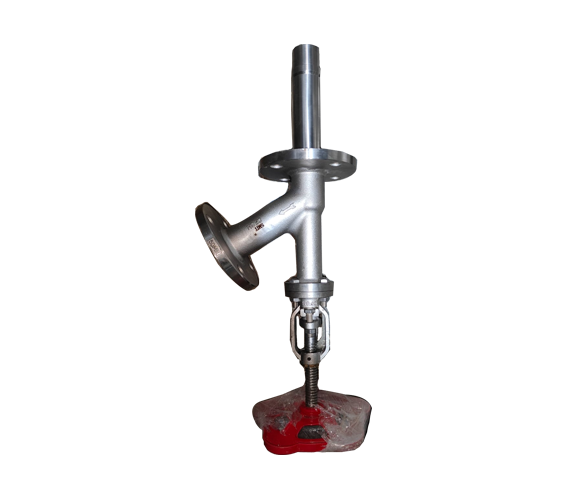

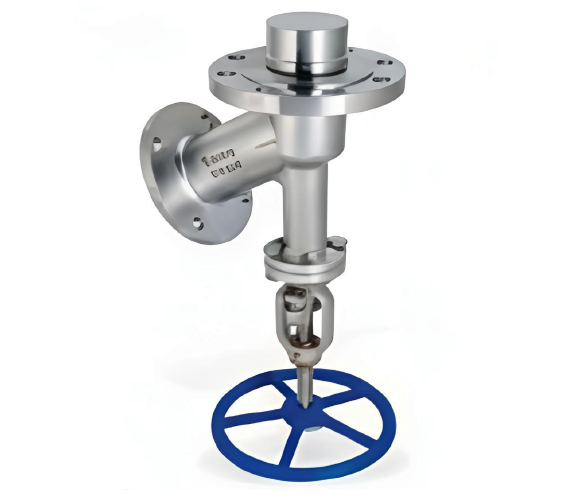

IC Y Type Flush Bottom Tank Valve

IC Y Type Flush Bottom Tank Valve

IC Y Type Flush Bottom Tank Valve

IC Y Type Flush Bottom Tank Valve Manufacturers In India

Features

Low Operating Torque
Leak Tight Stem Sealing
Presssure Rating : 150#/ (300# On Request)
End Connection : Flange End. RF
Flange Drilling : As per ANSI 8.16.5. 150#
Operation : Manual Hand Wheel Operated

Material Specification

PART NO	DESCRIPTION	MATERIAL
1	BODY	ASTM A351 Gr. CF8 / CF8M
4	BONNET	ASTM A351 Gr. CF8 / CF8M
5	PLUG	AISI 304 / 316
6	PLUG NUT	AISI 304 / 316
9	SEAT RING	AISI 304 / 316 OR Soft Seated
3	SCREW	AISI 304 / 316
7	GLAND BUSH	PTFE
8	GLAND	SS
8	GLAND SEAL	PTFE
10	BOLT	SS
11	NUT	SS
12	LOCKING SCREW	SS
13	SCREW NUT	Brass Metal
14	BOLT & NUT	SS
15	HAND WHEEL	MS
16	HAND WHEEL NUT	SS
17	WASHER	MS

Test Pressure

CLASS	HYDROSTATIC	SEAT TEST	AIR TEST
150#	31.5 Kg/cm²	22 Kg/cm²	7 Kg/cm²
300#	79 Kg/cm²	58 Kg/cm²	7 Kg/cm²

Technical Data

Design Std.
Testing Std.

Dimensions

SIZE	B	B1	B2	C	D	C1	D1	MN	PCD	CDM1	N1	PCD1	J1
1" x 1.5"	14	14	50	73	127	5	110	8	164	98	164	79	125
1.5" x 1.5"	14	14	50	73	127	3	127	16	498	164	98	150	—
1.5" x 2"	14	16	50	92	152	7	31	27	312	71	94	121	164
1.5" x 2"	14	16	50	92	152	9	215	2	194	121	194	115	150
2" x 2"	16	16	50	92	152	9	215	2	194	121	194	115	200
2" x 2.5"	16	17	50	105	173	9	215	21	194	140	194	121	200
2" x 3"	16	19	50	127	190	92	152	21	194	152	194	121	200
2.5" x 2.5"	17	17	50	105	178	105	178	19	194	140	194	140	200
2.5" x 3"	17	19	50	127	190	105	178	19	194	152	194	140	200
3" x 3"	19	19	50	127	190	127	190	19	194	183	194	152	200
3" x 4"	19	24	50	157	229	127	190	19	198	190	194	152	250
4" x 4"	24	24	50	157	229	157	229	19	198	190	198	190	250
4" x 6"	24	25	50	216	279	157	229	22	228	241	198	190	250
