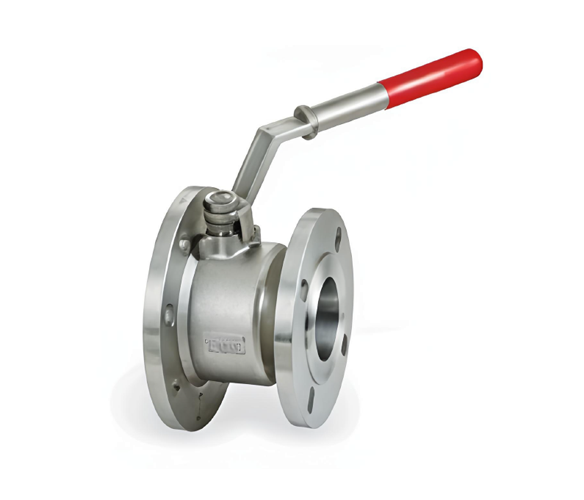

IC Flush Bottom Valve

IC Flush Bottom Valve

IC Flush Bottom Valve

Features

Low Operating Torque
Leak Tight Stom Sealing
Pressure Rating : 150#/(300#On Request)
End Connection : Flanges ENd. RF
Flange Drilling : As per ANSI 816.5. 150#
Face to Face Maufacturer Std.
Operation : Manual Hand Leaver Operated ( 45 Deg.)

Material Specification

PART NO.	DESCRIPTION	MATERIAL
1	BODY	ASTM A351 Gr. CF8 / CF8M
2	BALL	AISI 304 / 316
3	STEM	AISI 304 / 316
4	BALL SEAT	PTFE / GFT / CFT
5	BODY SEAL	PTFE / GFT / CFT
6	GLAND SEAL	PTFE / GFT / CFT
7	GLAND BUSH	SS
8	GLAND NUT	SS
9	HAND LEAVER	MS
10	HAND LEAVER NUT	MS
11	LEAVER SLEEVE	PVC

Technical Data

Testing Std. : BS 5755

Test Pressure

CLASS	HYDROSTATIC	SEAT TEST	AIR TEST
150#	31.5 Kg/cm²	22 Kg/cm²	7 Kg/cm²
300#	79 Kg/cm²	58 Kg/cm²	7 Kg/cm²

Dimensions

SIZE	NB	A	B	C	D
25X40	25	82	40	25	40
40X40	40	105	40	40	40
40X50	40	105	50	40	50
50X50	50	120	65	50	50
50X65	50	120	65	50	65
50X80	50	120	80	50	80
50X100	65	122	100	50	65
65X65	65	122	65	65	65
65X80	65	122	80	65	80
80X80	65	122	80	80	80
80X100	80	140	100	80	100
100X100	80	140	100	100	100
100X150	100	180	150	100	150
150X150	100	180	150	150	150
150X200	150	240	200	150	200
200X200	150	240	200	200	200
