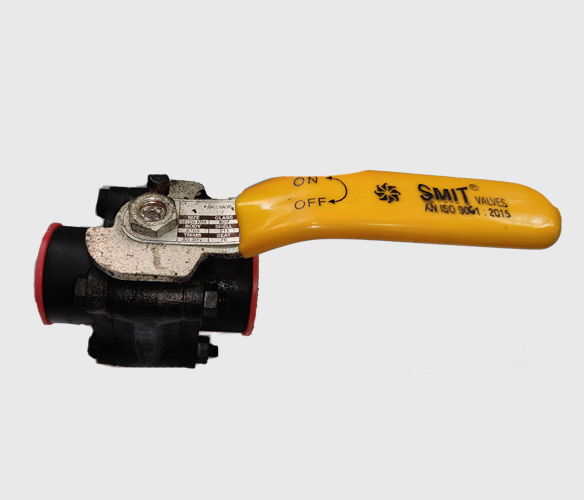

Forged Steel Ball Valve Screw End Manufacturers In India
Pressure Rating: 800# / 1500# / 2500#
| Part Name |
Material Option |
| Body |
ASTM A 105 / 182 F304 / 182 F316 / 182 304L / 182 316L / 182 F11 / 182 F22 / 350 LF2 |
| Body Connector |
ASTM A 105 / 182 F304 / 182 F316 / 182 304L / 182 316L / 182 F11 / 182 F22 / 350 LF2 |
| Connector Seal |
PTFE / GFT |
| Ball Seal |
PTFE / GFT |
| Ball |
AISI 304 / AISI 316 / AISI 304L / AISI 316L |
| Stem |
AISI 304 / AISI 316 / AISI 304L / AISI 316L / ALLOY 20 / HAST-B / HAST-C |
| Stem Seal |
PTFE / GFT |
| Gland Packing |
PTFE |
| Gland |
AISI 304 / AISI 316 / AISI 304L / AISI 316L |
| Gland Nut |
SS-304 |
| Lever |
SS-304 / MS |
| Lever Nut |
SS-304 / MS |
| Lever Sleeve |
PVC |

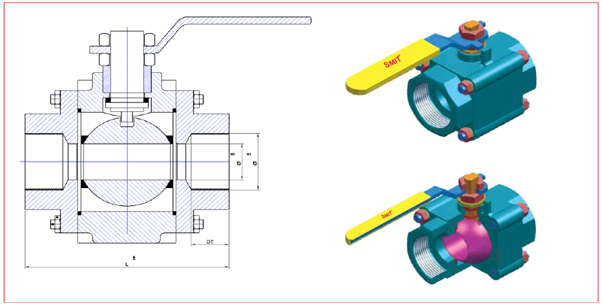

Dimension
Forged Steel 3 Pc Ball Valve (800 #)
| SIZE |
ØB |
L |
ØS |
DT |
| ½" (15 mm) |
13 |
66 |
19 |
16 |
| ¾" (20 mm) |
19 |
75 |
24.5 |
16 |
| 1" (25 mm) |
24 |
85 |
30.75 |
17 |
| 1.1/4" (32 mm) |
30 |
95 |
39 |
17 |
| 1.1/2" (40 mm) |
37 |
105 |
45 |
20 |
| 2" (50 mm) |
37 |
125 |
57 |
20 |
Forged Steel 3 Pc Ball Valve (1500 #)
| SIZE |
ØB |
L |
ØS |
DT |
| ½" (15 mm) |
13 |
75 |
19 |
16 |
| ¾" (20 mm) |
19 |
85 |
24.5 |
16 |
| 1" (25 mm) |
24 |
95 |
30.75 |
17 |
| 1.1/4" (32 mm) |
30 |
105 |
39 |
17 |
| 1.1/2" (40 mm) |
37 |
125 |
45 |
20 |
Forged Steel 3 Pc Ball Valve (2500 #)
| SIZE |
ØB |
L |
ØS |
DT |
| ½" (15 mm) |
85 |
13 |
19 |
16 |
| ¾" (20 mm) |
105 |
19 |
24.5 |
16 |
| 1" (25 mm) |
125 |
24 |
30.75 |
18 |
Dimension and other engineering data are subjected to change without notice.
