Forged Valves


Forged Valves



Features
Swastik Industries Forged Steel Valves have been designed to meet the requirements of API 602 / BS 5352 / ASME B 16.34
Socket weld ends dimensions conforms to ASME B 16.11
Screwed ends dimensions conforms to ASME B 1.20.1
Outside screw and yoke construction
The gland is of two piece self aligning type
Back seat arrangement for Gate and Globe Valves.
Valves meet the requirements of fugitive emission level Shell Category B as per MESC SPE 77/312
  ----------------------------------------------------------------------------------------------------------------------------------------------------
  Options

For low temperature and cryogenic services (cold box and non cold box) extended bonnet as per
BS 6364 available
Welded bonnet construction
Locking arrangement
Welded on flanges
Bellow Seal for critical service and hazardous area
  ----------------------------------------------------------------------------------------------------------------------------------------------------
  MATERIALS

Part Name Material Option
Body ASTM A 105 / 182 F304 / 182 F304L / 182 F316 / 182 F316L / 182 F11 / 182 F22 / 350 LF2
Bonnet ASTM A 105 / 182 F304 / 182 F304L / 182 F316 / 182 F316L / 182 F11 / 182 F22 / 350 LF2
Wedge / Plug@ ASTM A 182 F6a / 182 F304/182 F304L / 182 F316 / 182 F316L / 182 F11 / 182 F22 / 350 LF2
Stem ASTM A 276 T410 / 182 F304 / 182 F304L / 182 F316 / 182 F316L / 182 F11 / 182 F22 / 350 LF2
Seat Rings@ ASTM A 182 F6a / 182 F304 / 182 F304L / 182 F316 / 182 F316L / 182 F11 / 182 F22 / 350 LF2
Back Seat Bushing Integral
Gland ASTM A 276 T410 / 182 F304 / 182 F304L / 182 F316 / 182 F316L / 182 F11 / 182 F22 / 350 LF2
Gland Flange ASTM A 105 / 182 F304 / 182 F304L / 182 F316 / 182 F316L / 182 F11 / 182 F22 / 350 LF2
Stem Nut ASTM A 439 Gr.D2/AL.Bronze
Lock Nut Carbon Steel / SS 304
Gland Packing Graphited Asbestos / Grafoil / PTFE
Bonnet Gasket Spiral Wound SS 304 / 304L / 316 / 316L with Asbestos / Teflon or Grafoil
Gland Eye - Bolt & Nut SS 410/SS 304
Hand Wheel Carbon Steel
Hand Wheel Nut Carbon Steel
Studs / Bolts ASTM A 193 B7 / A 193 B7M / A 193 B8 / A 193 B8M / A 320 L7
Nut ASTM A 194 2H / A 194 2HM / A 194 8 / A 194 8M / A 194 4/7
  ----------------------------------------------------------------------------------------------------------------------------------------------------

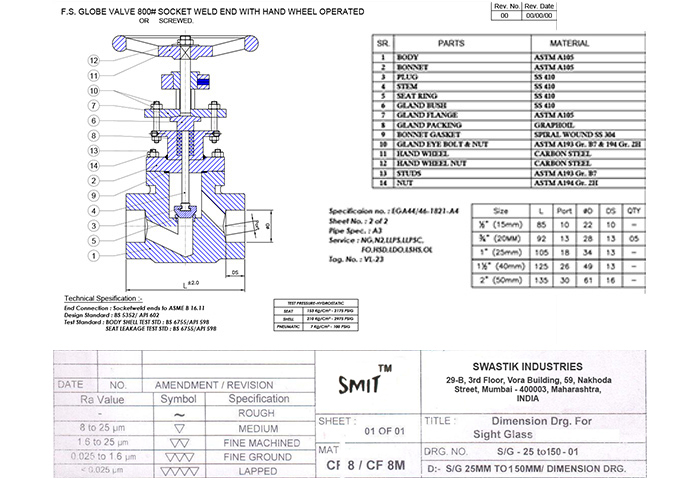

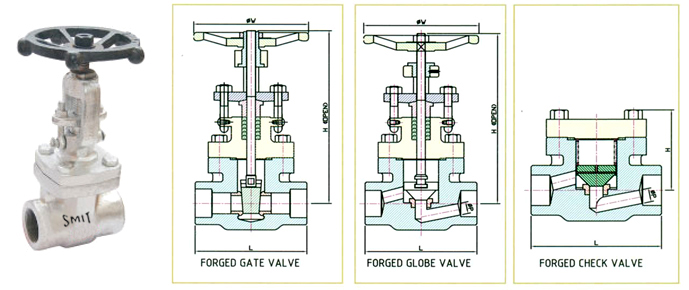

  Gate Valve - 800 Class

Size DN 6 10 15 20 25 32 40 50
L 85 85 85 92 105 125 125 135
P 6.4 6.4 9.5 12.7 17.5 22.8 22.6 36.5
H(approx) 165 165 165 175 195 265 265 275
ØW 85 85 85 85 150 150 150 150
Wt (approx) kg 2 2 2 3 3 8 8 10
  ----------------------------------------------------------------------------------------------------------------------------------------------------
  Gate Valve - 1500 Class

Size DN 6 10 15 20 25 32 40
L 92 92 92 105 125 125 135
P 6.4 6.4 9.5 12.7 15.9 19 27
H(approx) 175 175 175 195 265 275 275
ØW 90 90 90 100 150 150 150
Wt (approx) kg 3 3 3 4 8 10 10
