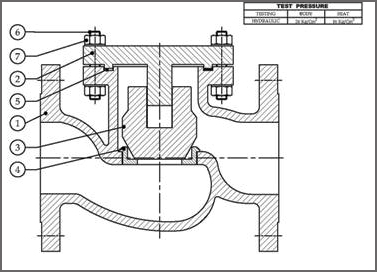

SMIT Lift Up Type Check Valve




  Manufacturing Std :85 1868
Face to Face : DIN 3202 (Part 1)
End to End : DIN 3202 (Part 2)
End Connection : Flange Ends to DIN 2543 (PN 16) & DIN 2545 (PN 40) : Butt Weld Ends to ANSI B 16.25
Inspection and Testing std. : BS 6755 (Part-I)


7

COVER NUTS

ASTM A194 Gr. 2H

6

COVER STUDS

ASTM A193 Gr. B7

5

COVER GASKET

ASBESTOS TILLER SS 304 SPIRAL WOUNDED

4

SEAT RING

ASTM A217 Gr. CA15

3

DISK

ASTM A217 Gr. WCB

2

COVER

ASTM A216 Gr. WCB

1

BODY

ASTM A216 Gr. WCB

P. No.

Nomenclature

Material




SIZE DN

A

B

C

D

E

15

130

16

45

95

65

20

150

18

58

105

75

25

160

18

68

115

85

40

200

18

88

150

110

50

230

20

102

165

125

65

290

22

122

182

145

80

310

24

138

200

160

100

350

24

162

235

190

125

400

26

188

270

220

150

480

28

218

300

250

200

600

34

285

375

320


  ----------------------------------------------------------------------------------------------------------------------------------------------------
