SMIT Wafer Type Butterfly Valve

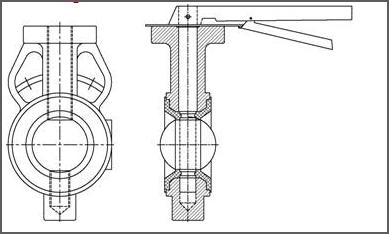

Wafer Type Butterfly Valve Handle Operated

Drawing

SR.	PARTS	MATERIAL
1	BODY	CAST IRON / CAST STEEL / S.S.304 - 316
2	DISC	CAST IRON / CAST STEEL / S.S.304 - 316
3	SPINDLE	S.S.410 / 304 / 316
4	BODY LINING	NITRILE / E.P.D.M / NEOPRENE / SILICON / VITON
5	'O' RING	NITRILE / E.P.D.M
6	PIN	S.S.304 / S.S.316
7	LEVER	M.S.FEBRICATED

SIZE									FLANGE MOUNTING
MM	INCH	A	B	C	D	E	F	G	( I.S.O.5211)
50	2	43	103	70	28	65	180	15	F07
65	2.1/2	46	110	76	48	65	180	15	F07
80	3	46	118	85	67	65	215	15	F07
100	4	52	148	102	88	65	215	15	F10
125	5	56	164	115	114	65	265	15	F10
150	6	56	176	130	142	65	265	15	F10
200	8	60	230	156	194	75	325	15	F12

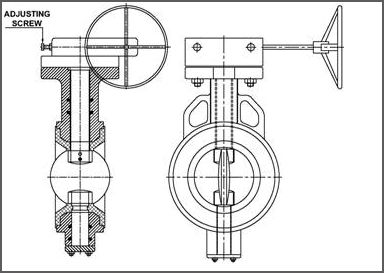

Wafer Type Butterfly Valve Gear Operated

Drawings

SR.	PARTS	MATERIAL
1	BODY	CAST IRON / CAST STEEL / S.S.304 - 316
2	DISC	CAST IRON / CAST STEEL / S.S.304 - 316
3	SPINDLE	S.S.410 / 304 / 316
4	BODY LINING	NITRILE / E.P.D.M / NEOPRENE / SILICON / VITON
5	'O' RING	NITRILE / E.P.D.M
6	PIN	S.S.304 / S.S.316
7	GEAR OPE.	STANDARD

SIZE									FLANGE MOUNTING
MM	INCH	A	B	C	D	E	F	G	( I.S.O.5211)
100	4	52	157	100	88	180	200	15	F07
125	5	56	164	115	114	180	200	15	F07
150	6	56	181	133	142	240	250	15	F07
200	8	60	230	156	194	285	350	15	F10
250	10	68	266	196	243	285	350	18	F10
300	12	78	300	230	292	285	350	18	F10
350	14	92	320	272	330	300	350	22	F12
400	16	102	385	302	375	305	500	22	F14
450	18	114	405	325	425	305	500	24	F14
500	20	127	465	405	470	370	450	26	F16
600	24	154	540	460	570	350	600	26	F16

----------------------------------------------------------------------------------------------------------------------------------------------------
