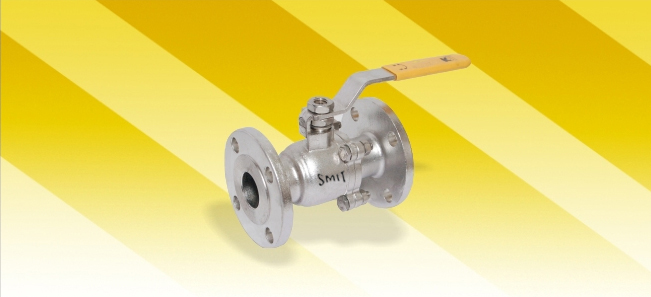

SMIT Ball Valves 2pc - FE





Features
SMIT Mark Cast Steel Ball Valves have been designed to meet the requirements
BS 5351/ASME B 16.34 / API 6D /API 608/MSS SP 72
Face to Face and End to End dimensions conform to ASME B 16.10 / BS 2080 /API 6D/ DIN
End flange dimensions conform to ASME B 16.5 / API 605 / BS 3293 / DIN
Butt weld end dimensions conform to ASME B 16.25
Fire tested design to API 607/API 6FA/BS 6755-II
Flexible lip seats compensate for wear and changes in pressure
Blow out proof stem construction
Antistatic devices ensure electrical continuity between ball, stem & body
Triple stem sealing
ISO 5211 top pad for simplified gear/actuator mounting
Valves meet the requirements of fugitive emission levels Shell category B as per MESC SPE 77/312
  ----------------------------------------------------------------------------------------------------------------------------------------------------

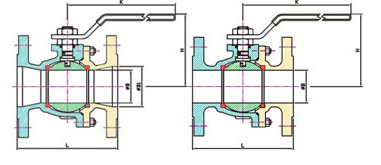

  Drawings

2PC FLOATING BALL REDUCE PORT2PC FLOATING BALL FULL PORT
  Options

For low temperature and cryogenic services (cold box and non-cold box applications extended bonnet as per BS 6364 available
Locking arrangement
Gear, Electrical, Hydraulic or Pneumatic actuator available
Soft seats are recommended for service temperature up to 260°C and for higher temperatures a metal to metal seating offered can be supplied
  ----------------------------------------------------------------------------------------------------------------------------------------------------
  MATERIALS

Part Name Material Option
Body ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Side Piece ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Ball ASTM A 351 CF8 / A 351 CF8M / A 182 F304 / A 182 F316 / A 182 F 6a
Body Seal PTFE / Graphoil / Spiral Wound SS 316 with Graphoil
Seats ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Stem ASTM A 182 F304 / A 182 F316 / A 182 F 6a
Gland Bush ASTM A 182 F304 / A 182 F316 / A 182 F 6a
Gland Packing Graphoil / PTFE
Stem Packing Graphite filled PTFE / Graphoil
Gland Nut Stainless Steel
Stem Nut Stainless Steel
Lever Carbon Steel with PVC
Disc Spring Carbon Steel
Studs / Bolts ASTM A 193 B7 / A 193 B7M / A 193 B8 / A 193 B8M / A 320 L7
Nut ASTM A 194 2H / A 194 B7M / A 194 B / A 194 8M / A 194 4/7
  ----------------------------------------------------------------------------------------------------------------------------------------------------
  Ball Valve 2PC 150 Class

Size DN 150 200 250 300 325 400 450 500 550 600
L-RF 394 457 533 610 686 762 864 914 1067 1143
B 148 198 248 298 335 380 438 489 597 635
H (approx) 270 315 360 410 425 475 525 590 695 790
K 300 300 400 400 600 600 600 600 750 750
Wt ( approx ) kg 110 160 320 448 567 850 1050 1350 1750 3100
  ----------------------------------------------------------------------------------------------------------------------------------------------------

Size DN 700 750 800 900 1000 1050 1200
L-RF 1245 1295 1372 1524 1778 1854 2134
B 685 735 780 875 980 1020 1170
H (approx) 855 895 945 1025 1100 1150 1350
K 750 750 750 750 750 750 750
Wt (approx) kg 3550 4300 4850 6800 8900 10100 16100

  Ball Valve 2PC 300 Class


Size DN

150

200

250

300

350

400

450

500

600

650

**L,L1-RW,BW

403

501

568

635

762

838

914

991

1143

1245

B

148

198

248

298

335

380

438

489

591

635

H(approx)

285

345

380

435

450

495

570

615

710

815

K

300

300

400

400

600

600

600

750

750

750

Wt. ( approx ) kg

128

210

345

560

780

1020

1200

1625

2285

3350



Size DN

700

750

800

900

1000

1050

1200

**L,L1-RW,BW

1346

1397

1524

1727

1981

2083

2387

B

685

735

780

875

980

1020

1170

H(approx)

870

910

960

1040

1115

1175

1375

K

750

750

750

750

750

750

750
Wt. ( approx ) kg 3950 4900 5500 7500 9980 10500 17800

  Ball Valve 2PC 600 Class


Size DN

50

65

80

100

150

200

250

300

350

400

450

**L,L1-RW,BW

292

300

356

432

559

660

787

838

889

991

1092

B

51

64

76

102

148

198

245

295

325

375

438

H(approx)

190

230

265

295

300

355

415

455

505

515

600

K

250

250

300

300

400

400

400

600

600

600

750

Wt. ( approx ) kg

34

40

45

98

200

395

555

840

1015

1220

1350



Size DN

500

600

650

700

750

800

900

1000

1050

1200

**L,L1-RW,BW

1194

1397

1448

1549

1651

1778

2083

2337

2438

2845

B

489

591

635

685

735

780

875

980

1020

1170

H(approx)

640

735

815

870

910

960

1040

1115

1175

1375

K

750

750

750

750

750

750

750

750

750

750

Wt. ( approx ) kg

2080

2745

4500

5500

5900

6900

8900

12600

14000

25500

  Ball Valve 2PC 900 Class


Size DN

50

65

80

100

150

200

250

300

350

400

**L,L1-RW,BW

368

419

381

457

610

737

838

965

1029

1130

B

51

64

76

98

148

198

245

295

325

375

H(approx)

210

250

285

280

360

455

510

525

595

650

K

250

300

300

400

400

600

600

600

750

750

Wt. ( approx ) kg

45

50

72

130

235

495

690

1050

1350

1750



Size DN

450

500

600

650

750

900

**L,L1-RW,BW

1219

1321

1549

1651

1880

2286

B

438

489

570

620

715

860

H(approx)

685

695

735

815

910

1040

K

750

750

750

750

750

750

Wt. ( approx ) kg

2360

2850

4800

6100

8200

9900

  Ball Valve 2PC 1500 Class


Size DN

50

65

80

100

150

200

250

300

350

400

**L,L1-RW,BW

368

419

470

546

705

832

990

1130

1257

1384

B

51

64

76

102

146

194

241

290

320

360

H(approx)

230

260

290

305

370

470

520

575

635

700

K

300

300

400

400

600

600

750

750

750

750

Wt. ( approx ) kg

52

74

98

144

320

695

960

1550

2600

3700
