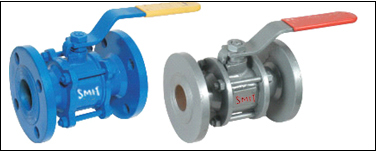

SMIT Ball Valves 3pc - FE





Features
SMIT Mark Cast Steel Ball Valves have been designed to meet the requirements
BS 5351/ASME B 16.34 / API 6D /API 608/MSS SP 72
Face to Face and End to End dimensions conform to ASME B 16.10 / BS 2080 /API 6D/ DIN
End flange dimensions conform to ASME B 16.5 / API 605 / BS 3293 / DIN
Butt weld end dimensions conform to ASME B 16.25
Fire tested design to API 607/API 6FA/BS 6755-II
Flexible lip seats compensate for wear and changes in pressure
Blow out proof stem construction
Antistatic devices ensure electrical continuity between ball, stem & body
Triple stem sealing
ISO 5211 top pad for simplified gear/actuator mounting
Valves meet the requirements of fugitive emission levels Shell category B as per MESC SPE 77/312
  ----------------------------------------------------------------------------------------------------------------------------------------------------
  Drawings

3PC FLOATING BALL FULL PORT
  Options

One, two or three piece construction
For low temperature and cryogenic services (cold box and non-cold box applications extended bonnet as per BS 6364 available
Locking arrangement
Gear, Electrical, Hydraulic or Pneumatic actuator available
Soft seats are recommended for service temperature up to 260°C and for higher temperatures a metal to metal seating offered can be supplied

  Valve Option

  ----------------------------------------------------------------------------------------------------------------------------------------------------
  MATERIALS

Part Name Material Option
Body ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Side Piece ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Ball ASTM A 351 CF8 / A 351 CF8M / A 182 F304 / A 182 F316 / A 182 F 6a
Body Seal PTFE / Graphoil / Spiral Wound SS 316 with Graphoil
Seats ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Stem ASTM A 182 F304 / A 182 F316 / A 182 F 6a
Gland Bush ASTM A 182 F304 / A 182 F316 / A 182 F 6a
Gland Packing Graphoil / PTFE
Stem Packing Graphite filled PTFE / Graphoil
Gland Nut Stainless Steel
Stem Nut Stainless Steel
Lever Carbon Steel with PVC
Disc Spring Carbon Steel
Studs / Bolts ASTM A 193 B7 / A 193 B7M / A 193 B8 / A 193 B8M / A 320 L7
Nut ASTM A 194 2H / A 194 B7M / A 194 B / A 194 8M / A 194 4/7
  ----------------------------------------------------------------------------------------------------------------------------------------------------
  Ball Valve 3PC 150 Class


Size DN

15

20

25

40

50

65

80

100

150

200

L-RF

108

118

127

165

178

190

203

229

394

457

B

12.5

17

24

37

49

64

75

98

148

198

H(approx)

65

70

80

95

110

135

145

170

235

275

K

150

155

160

180

200

225

325

350

500

600

Wt. ( approx ) kg

3

4

5

8

12

22

28

45

83

158

  ----------------------------------------------------------------------------------------------------------------------------------------------------
  Ball Valve 3PC 300 Class


Size DN

15

20

25

40

50

65

80

100

150

200

**L,L1-RW,BW

140

152

165

190

216

241

282

305

403

502

B

12.5

17

24

37

49

64

75

98

148

198

H(approx)

70

85

90

105

120

145

160

195

250

290

K

155

160

180

200

225

325

350

500

600

700

Wt. ( approx ) kg

3

5

7

14

17

30

35

58

110

175
