SMIT Thru Conduit Gate Valve

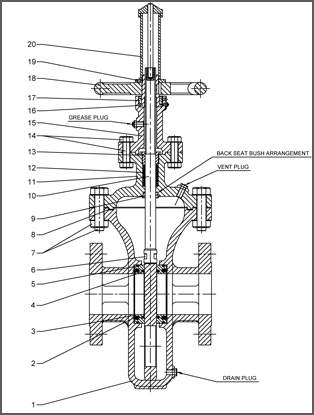

Drawing

VALVE DESIGN AS PER API-6D.
VALVE FLANGES AS PER ASME-B-16.5
VALVE TESTING AS PER API-6D.
ALL DIMENSIONS ARE IN MM
UNLESS OTHERWISE SPECIFIED

SR.NO,	DISCRIPTION	MAT.
1	BODY	ASTM A216 GR.WCB
2	SEAT RING SPRING	SPRING STEEL
3	SEAT RING	AISI 410 / A 217 Gr. CA-15
4	SEATINSERT	PTFE
5	'O'RING	VITON
6	GATE
7	BONNET STUD/NUT	ASTM A193 Gr.B7/A194 Gr.2H
8	GASKET	SPIRAL WOUND -SS.304 CAF.
9	BACK SEAT BUSH	AISI 410
10	STEM	AISI 410
11	BONNET	ASTM A216 Gr.WCB
12	GLAND PACKING	CHEVRON RING GRAFOIL RINGS
13	GLAND NUT	AISI 410
14	YOKE STUD/NUT	ASTM A193 GR.B7/A194 GR.2H
15	YOKE	ASTM A216 Gr.WCB
16	YOKE SLEEVE	ASTM A439 Gr.D2
17	YOKE BUSH	CARBON STEEL
18	HAND WHEEL	ASTM A216 Gr.WCB/M.I.A338
19	HAND WHEEL NUT	CARBON STEEL
20	STEM ENCLOSURE	CARBON STEEL

----------------------------------------------------------------------------------------------------------------------------------------------------
