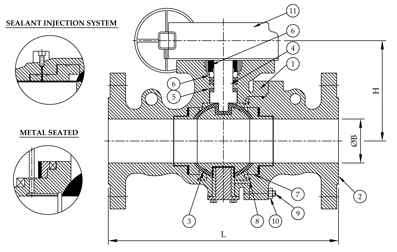

SMIT High Pressure Ball Valve

SIZE	50MM	100MM	150MM
ØB	51	102	148
L	292	432	559
H	190	295	300

SR.	PARTS	MATERIAL
1	BODY	ASTM A 105 A 216GR.WCB
2	SIDE PIECE	ASTM A 105 A 216GR.WCB
3	BALL	S.S.304 S.S.316
4	STEM PIN	S.S.304 S.S.316
5	BONNET RING	GRAFOIL / PTFE
6	GLAND	ASIM A194 GR 2H
7	SEAT RING	PTFE
8	"O"RING	PTFE
9	STUD	ASIM A193 GR B7
10	HEX NUT & SPRING WASHER	ASIM A194 GR 2H
11	GEAR BOX	M.S.

Ball Valve 3PC 150 Class

SIZE DN	150	200	250	300	350	400	450	500	600	650	700	750	800	900	1000	1050	1200
L- RF	394	457	533	610	686	762	864	914	1067	1143	1245	1295	1372	1524	1778	1854	2134
B	148	198	248	298	335	380	438	489	591	635	685	735	780	875	980	1020	1170
H (approx)	270	315	360	410	425	475	525	590	695	790	855	895	945	1025	1100	1150	1350
Ǿw	300	300	400	400	600	600	600	600	750	750	750	750	750	750	750	750	750
Wt.(approx) Kg	110	160	320	448	567	850	1050	1350	1750	3100	3550	4300	4850	6800	8900	10100	16100

Ball Valve 3PC 300 Class

SIZE DN	150	200	250	300	350	400	450	500	600	650	700	750	800	900	1000	1050	1200
L- RF	403	501	568	635	762	838	914	991	1143	1245	1346	1397	1524	1727	1981	2083	2387
B	148	198	248	298	335	380	438	489	591	635	685	735	780	875	980	1020	1170
H (approx)	285	345	380	435	450	495	570	615	710	815	870	910	960	1040	1115	1175	1375
Ǿw	300	300	400	400	600	600	600	750	750	750	750	750	750	750	750	750	750
Wt.(approx) Kg	128	210	345	560	780	1020	1200	1625	2285	3350	3950	4900	5500	7500	9980	10500	17800

Ball Valve 3PC 600 Class

SIZE DN	50	65	80	100	150	200	250	300	350	400	450	500	600	650	700	750	800	900	1000	1050	1200
L- RF	292	300	356	432	559	660	787	838	889	991	1092	1194	1397	1448	1549	1651	1778	2083	2337	2438	2845
B	51	64	76	102	148	198	245	295	325	375	438	489	591	635	685	735	780	875	980	1020	1170
H (approx)	190	230	265	295	300	355	415	455	505	515	600	640	735	815	870	910	960	1040	1115	1175	1375
Ǿw	250	250	300	300	400	400	400	600	600	600	750	750	750	750	750	750	750	750	750	750	750
Wt.(approx) Kg	34	40	45	98	200	395	555	840	1015	1220	1350	2080	2745	4500	5500	5900	6900	8900	12600	14000	25500

Ball Valve 3PC 1500 Class

SIZE DN	50	65	80	100	150	200	250	300	350	400
L- RF	368	419	470	546	705	832	990	1130	1257	1384
B	51	64	76	102	146	194	241	290	320	360
H (approx)	230	260	290	305	370	470	520	575	635	700
Ǿw	300	300	400	400	600	600	750	750	750	750
Wt.(approx) Kg	52	74	98	144	320	695	960	1550	2600	3700

----------------------------------------------------------------------------------------------------------------------------------------------------
