SMIT Lug Type Butterfly Valve

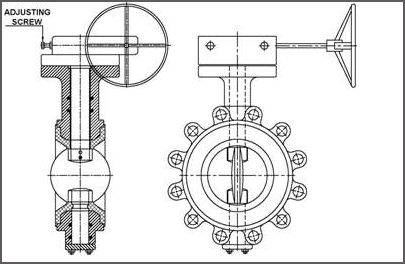

  Lug Type Butterfly Valve Gear Operated
  Drawing





SR.

PARTS

MATERIAL

1

BODY

CAST IRON / CAST STEEL / S.S.304 - 316

2

DISC

CAST IRON / CAST STEEL / S.S.304 - 316

3

SPINDLE

S.S.410 / 304 / 316

4

BODY LINING

NITRILE / E.P.D.M / NEOPRENE / SILICON / VITON

5

'O' RING

NITRILE / E.P.D.M

6

PIN

S.S.304 / S.S.316

7

GEAR OPE.

STANDARD

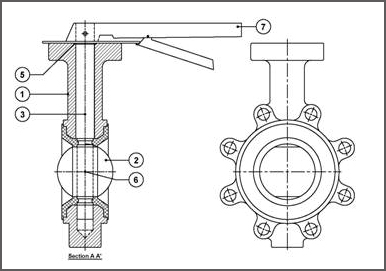

  Lug Type Butterfly Valve Handle Operated

  Drawing




SR.

PARTS

MATERIAL

1

BODY

CAST IRON / CAST STEEL / S.S.304 - 316

2

DISC

CAST IRON / CAST STEEL / S.S.304 - 316

3

SPINDLE

S.S.410 / 304 / 316

4

BODY LINING

NITRILE / E.P.D.M / NEOPRENE / SILICON / VITON

5

'O' RING

NITRILE / E.P.D.M

6

PIN

S.S.304 / S.S.316

7

LEVER

M.S.FEBRICATED
  ----------------------------------------------------------------------------------------------------------------------------------------------------
