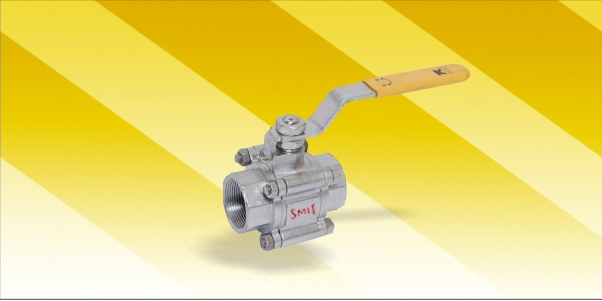

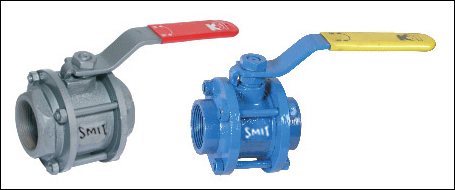

SMIT Ball Valves 3pc - SE





CONSTRUCTION

3 Piece Full Bore, Blow Out Proof Stem Floating Ball, Fire /Non Fire Safe Design

MANUFACTURING STANDARD
BS-5351

TESTING STANDARD
BS-5146

FACE TO FACE
AS SHOWN

END CONNECTION

  • screwed Ends to BSP / BSPT / NPT FEMALE Threads.
  • Socket Weld Ends to ANSI-B-16.11

VALVES OPTION

  Drawings

3PC DESIGN FULL BORE BALL VALVE
SCREWED END

  MATERIALS

Part Name Material Option
Body ASTM A 351 CF8 / CF3 / CF 8M / CF 3M / ALLOY 20 / HAST B / HAST C / ASTM A 216 GR. WCB / IS 210 GR. FG 200 / 220
Body ASTM A 351 CF8 / CF3 / CF 8M / CF 3M / ALLOY 20 / HAST B / HAST C / ASTM A 216 GR.
Connector WCB / IS 210 GR. FG 200 / 220
Body Seal PTFE / GFT
Ball Seats PTFE / GFT
Ball AISI304/ AISI316 / AISI304L / AISI316L / ALLOY20 / HAST-B / HAST-C
Stem AISI304/ AISI316 / AISI304L / AISI316L / ALLOY20 / HAST-B / HAST-C
Stem Seal PTFE/GFT
Gland Packing PTFE
Gland AISI304/ AISI316 / AISI304L / AISI316L / ALLOY20 / HAST-B / HAST-C
Gland Nut SS-304
Lever SS -304/MS. Cd. PLATED
Lever Nut SS - 304/MS. Cd. PLATED
Body Stud SS-304/ASTM A 193 Gr. B 7
Body Nut SS-304/ASTM A 194 Gr. 2 H
Lever Sleeve PVC
  ----------------------------------------------------------------------------------------------------------------------------------------------------


Ball Valve 3PC SE


Size DN

ØB

L

CS

CLH

CL

ØS

DT

15

12.5

65

35

50

110

1/2"

13.5

20

17

75

40

55

110

3/4"

14

25

24

85

42

60

135

1"

17.5

40

37

105

70

95

220

1.1/2"

18.5

50

49

125

85

100

260

2"

19.5
  ----------------------------------------------------------------------------------------------------------------------------------------------------
