Ball Valves - 1pc S/E


Ball Valves - 1pc S/E


  ----------------------------------------------------------------------------------------------------------------------------------------------------

Construction
1 Piece Full Bore, Blow Out Proof Stem Floating Ball, Fire /Non Fire Safe Design

Manufacturing Standard
BS-5351

Testing Standard
BS-5146

Face To Face
As Shown

End Connection
Screwed Ends to BSP / BSPT / NPT FEMALE Threads.
Socket Weld Ends to ANSI-B-16.11


  Materials

Part Name Material Option
Body ASTM A 351 CF8 / CF3 / CF 8M / CF 3M / ALLOY 20 / HAST B / HAST C / ASTM A 216 GR. WCB / IS 210 GR. FG 200 / 220
Body Connector ASTM A 351 CF8 / CF3 / CF 8M / CF 3M / ALLOY 20 / HAST B / HAST C / ASTM A 216 GR. WCB / IS 210 GR. FG 200 / 220
Connector Seal PTFE / GFT
Ball Seat PTFE / GFT
Ball AISI304/ AISI316 / AISI304L / AISI316L / ALLOY20 / HAST-B / HAST-C
Stem AISI304/ AISI316 / AISI304L / AISI316L / ALLOY20 / HAST-B / HAST-C
Stem Seal PTFE/GFT
Gland Packing PTFE
Gland AISI304/ AISI316 / AISI304L / AISI316L / ALLOY20 / HAST-B / HAST-C
Gland Nut SS-304
Lever SS - 304/MS. Cd. PLATED
Lever Nut SS - 304/MS. Cd. PLATED
Lever Sleeve PVC
  ----------------------------------------------------------------------------------------------------------------------------------------------------

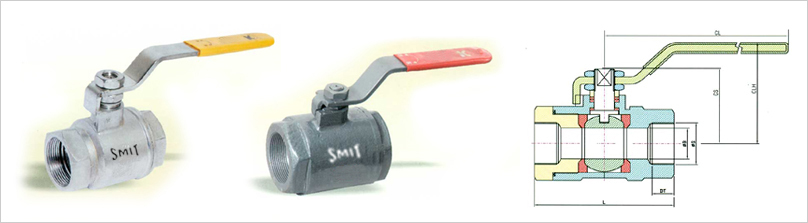

  BALL VALVE 1PC S/E

Size DN ØB L CS CLH CL ØS DT
8 6 60 32 49 95 1/4" 10.5
10 9 60 32 49 95 3/8" 10.5
15 12.5 65 35 50 110 1/2" 13.5
20 17 75 40 55 110 3/4" 14
25 24 85 42 60 135 1" 17.5
32 30 95 55 75 170 1.1/4" 18.0
40 37 105 70 95 220 1.1/2" 18.5
50 49 125 85 100 260 2" 19.5
